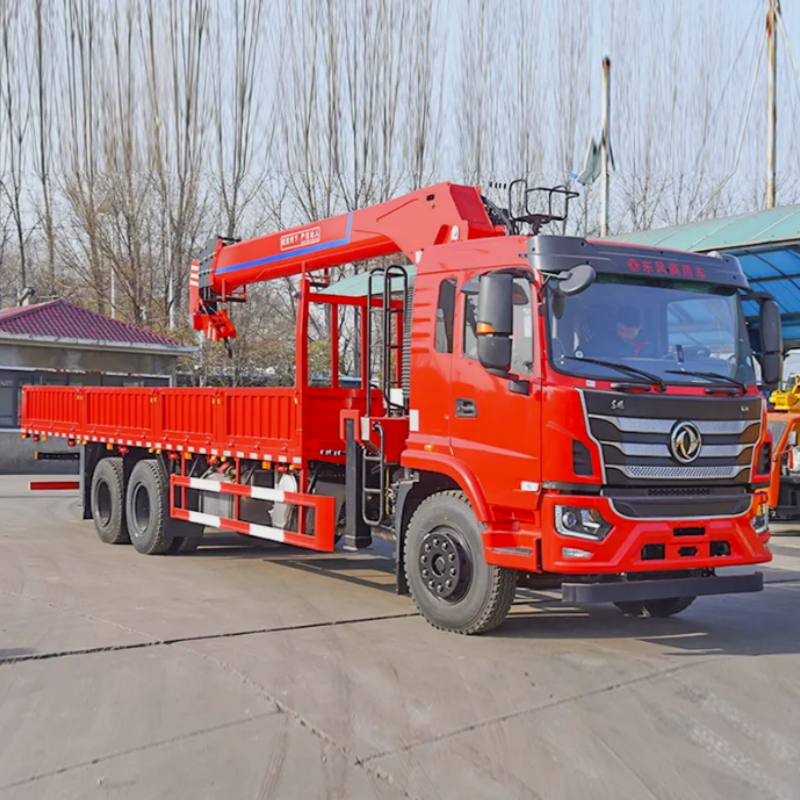

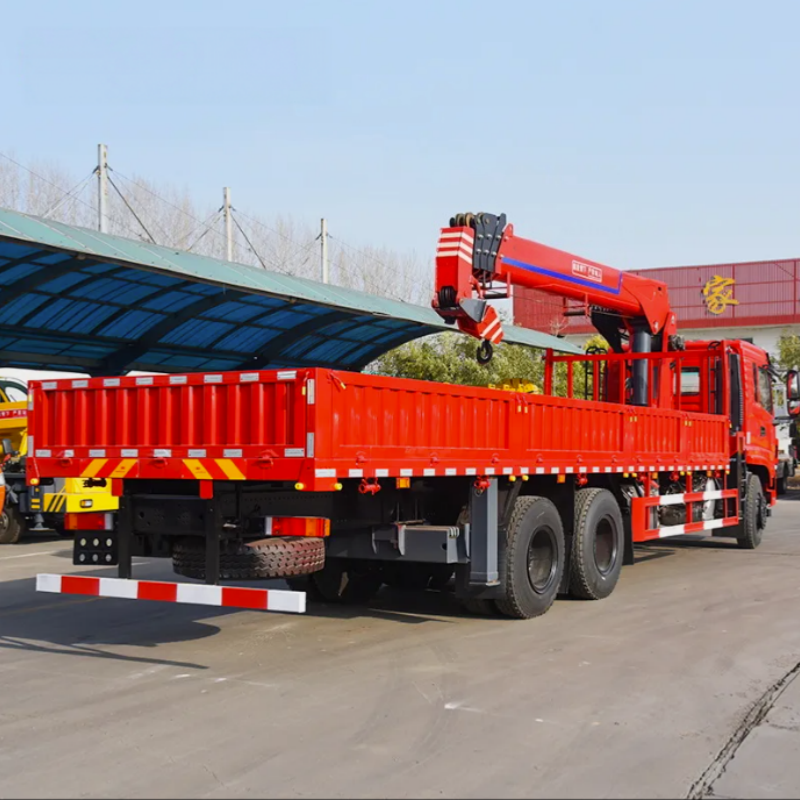

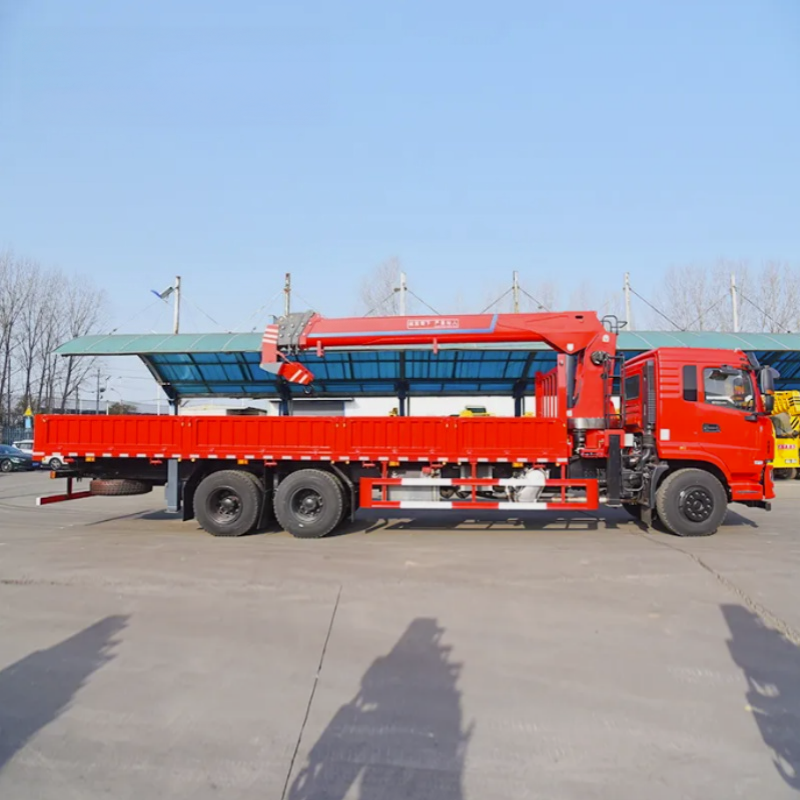

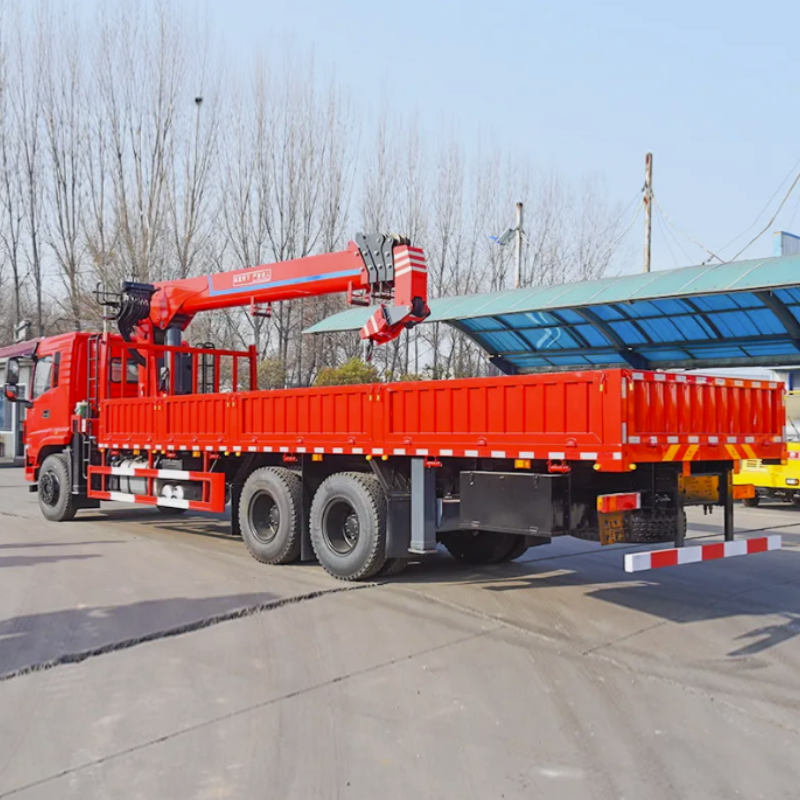

Small Mobile Hydraulic Jib Crane 4-16 Ton for Construction
| 12 tons with the car crane (Dongfeng chassis) | |||||
| Chassis parameter | Crane parameter | ||||
| Choosing a chassis | Dongfeng Huashen F5 (National Six) | Maximum weight | 12000 kg | ||
| engine model | YCS06270-60(yu cai) | Boom | 5m*5Festival(U -shaped arm) | ||
| Engine power | 199kw(270horsepower) | Basic arm length | 5.6m-18.8 m | ||
| Tire model | 11.00R20-18PR | Maximum rise height | 21.8 m | ||
| Wheelbase | 5900+1350mm | The width of the whole machine, cross -spacing | 2.5 m*5.8m | ||
| Axle load | 7000/18000(kg) | Maximum elevation | 0-75° | ||
| Cooling System | air conditioner | Turning angle | 360°Full rotation | ||
| Total quality | 25000kg | Swing speed | 2.5 | ||
| Quality | 16230kg | Hydraulic leg | Automatic (two -cavity back legs) | ||
| Rated contained mass | 8575kg | Stretch | Rod rope | ||
| Internal size of the cargo compartment | 8500*2450*550mm | Way of arms | Two oil tanks out of the arm (the second arm is single out) | ||
| Dimensions | 12000*2550*3950mm | Maximum lifting torque | 30T*M | ||
| Maximum speed | 90km/h | Double pump combined flow, one -click start -stop control, aluminum alloy hydraulic oil tank | |||
| Car rack | 300 Three -layer | ||||
