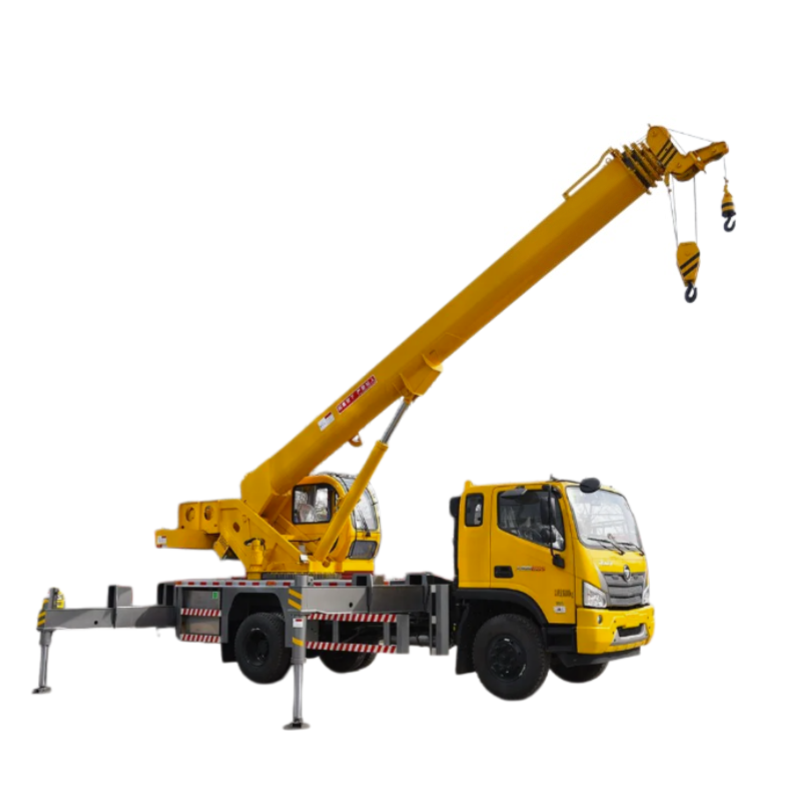

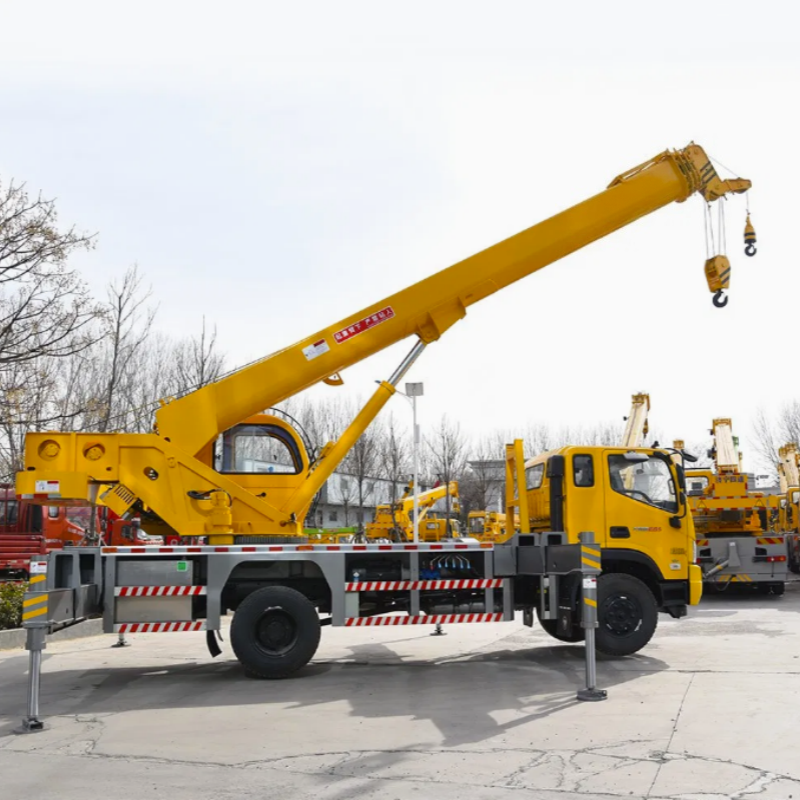

model

STC12D5-FT

main hook winch

Inclined axis winch (large)

Chassis model

(FOTON)4500

Auxiliary hook winch

Inclined axis winch (large)

Maximum weight

16000 Kg

Reducer model

Planetary reducer

Maximum Lifting Height

36.6 m

Slewing ring

011.40.1120

U-shaped boom

8.5x5m

(single board arm)

Engine Three Pumps

63/50/32

Outrigger span (horizontal * vertical)

5.4x6.5m

(Knuckles)

Three motor pumps

50/40/32

Dimensions

10.9x2.35x3.35 m

center rotation

big six holes

Motor Power

15 Kw

Large frame size

Cabinet rack

Lifting Speed Brush/Main Hook

120/110 m/min

Boom size

560x462mm

Swing speed

0-3rpm

rear shift top

Hydraulically telescopic rear legs

Engine model: Weichai

WP4.1NQ190E61

direction form

help

engine power

140 Kw/190

brake form

air brake

tire model(Steel tire)

10.00-R20

gearbox

(Fast) 8JS85F

Driving speed

75 Km/h

operating room

operating room

wheelbase

4500mm

Actual/Advertised Weight

18000 Kg

Other configurations: double-sided operation, negative angle, electronic throttle, small hook, air cushion seat

Optional: hydraulic air conditioner, front air conditioner, electric air conditioner, remote control power off, torque, camera, manual hydraulic pump
