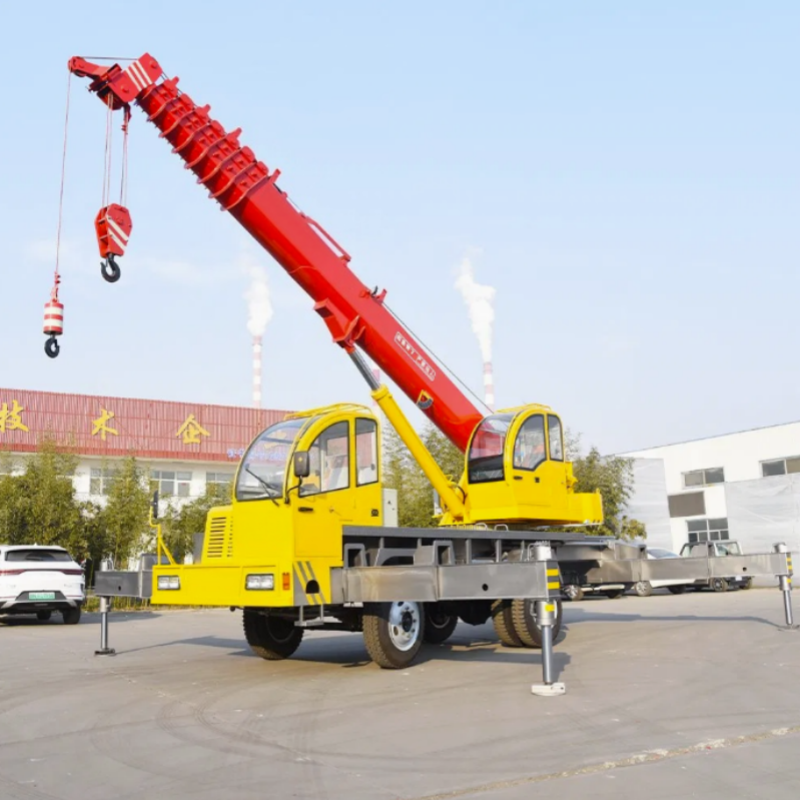

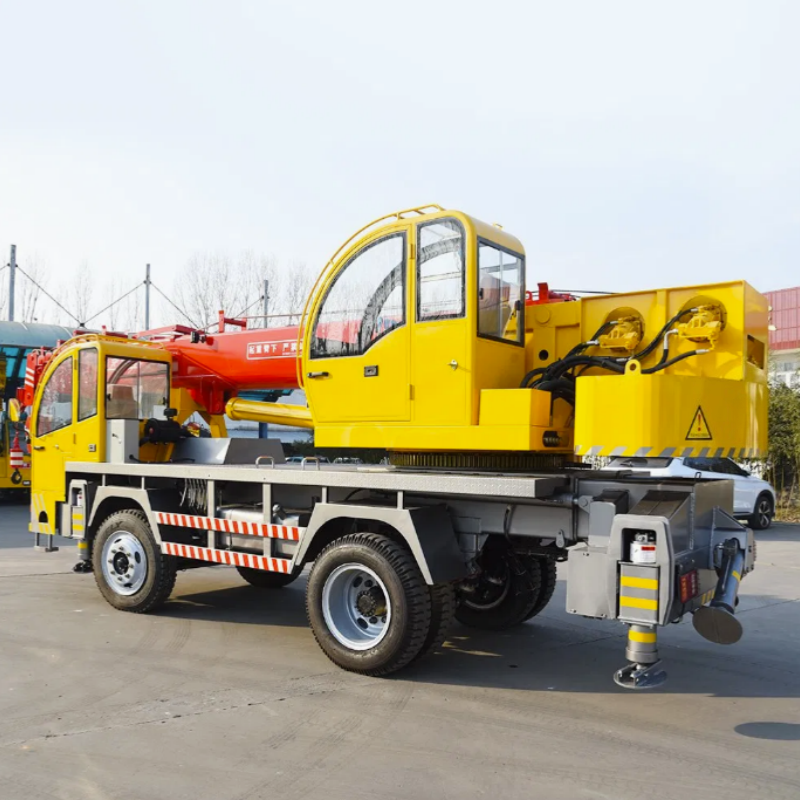

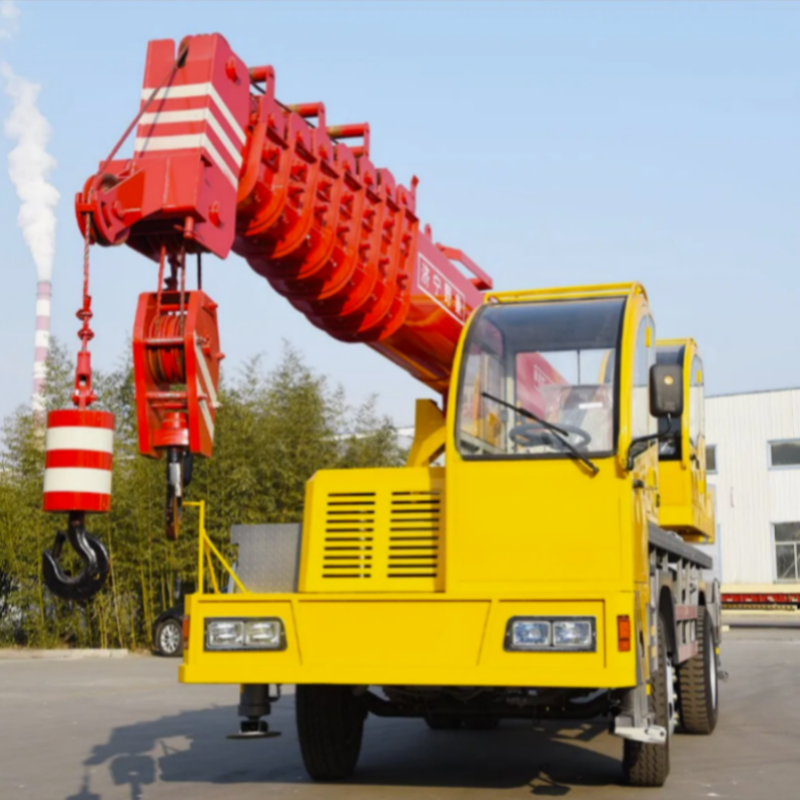

model

STC12D5-DF

main hook winch

Inclined axis winch

Chassis model

(dongfeng)4200

Auxiliary hook winch

Inclined axis winch

Maximum weight

12000 Kg

Reducer model

Planetary reducer

Maximum Lifting Height

40m

Slewing ring

011.40.1120

U-shaped boom

8 meters * 6 knots

(veneer)

Engine(double pump)

50/40

Outrigger span (horizontal * vertical)

4.6x6.5m

(Knuckles)

Motor(double pump)

50/40

Dimensions

10.5x2.35x3.32 m

center rotation

big five holes

Motor Power

15 Kw

Large frame size

Cabinet rack

Lifting speed auxiliary/main hook

120/110 m/min

Boom size

560x462

Swing speed

0-3rpm

rear shift top

standard

Engine model (Yuchai)

YCY30165-60-165(horsepower)

direction form

help

tire model(Steel tire)

900R20

brake form

air brake

Driving speed

89Km/h

gearbox

Fast 8 gears

wheelbase

4200mm

Actual/Advertised Weight

16000 Kg

other configuration:Double-sided operation, negative angle, electronic throttle, small hook, air cushion seat, front air conditioner

Optional:Air conditioner, remote control power off, torque, camera, manual hydraulic pump 7 meters * 6 knots outside the rope
