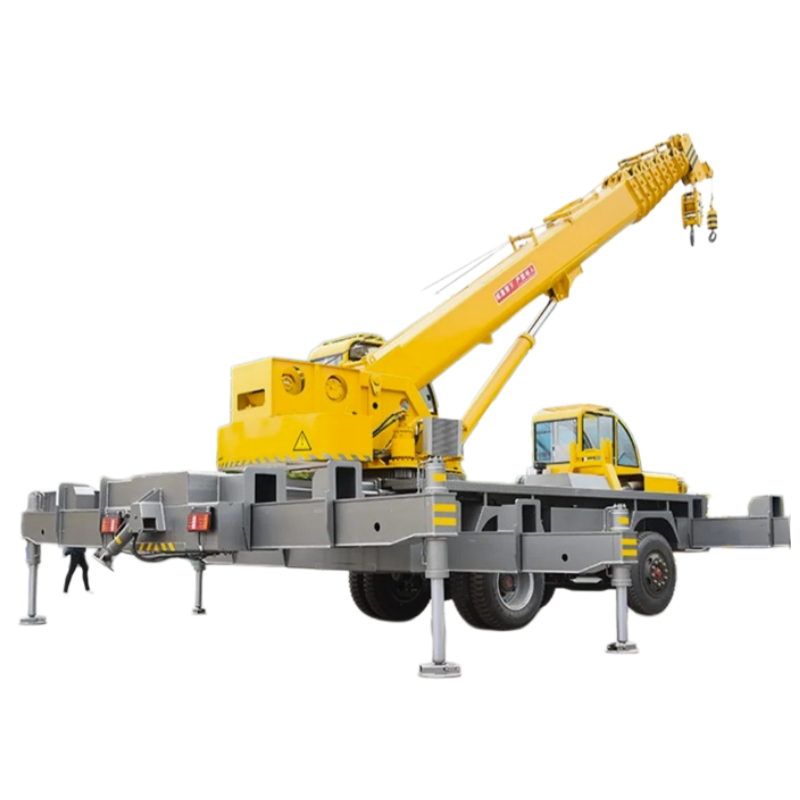

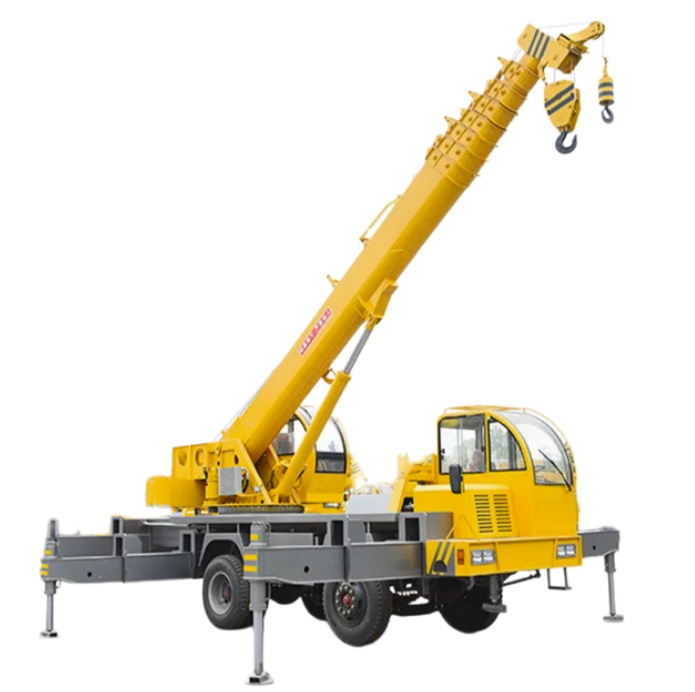

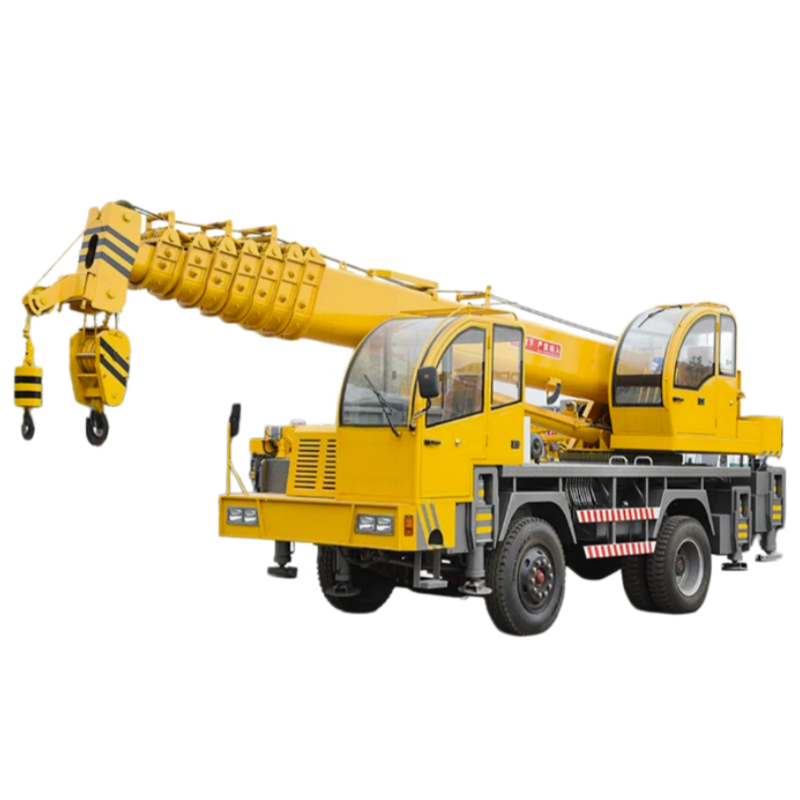

model

STSQ16D

main hook winch

12T inclined axis winch

Maximum weight

16000KG

Auxiliary hook winch

8T inclined axis winch

Maximum Lifting Height

40m

Reducer model

Planetary reducer

jib

6 meters*8 knots

Slewing ring

1125-4#

Outrigger span

6.75*6.7m(double outrigger)

engine pump

63/50pumps

large telescopic

1.3m

motor pump

50/40pumps

Dimensions

9.1*2.25*3.1m

center rotation

center rotation

Motor Power

15kw

Large frame size (telescopic large frame)

500*200*12mm

Lifting speed main hook/auxiliary hook

135/80m/min

Boom size

U606*396mm

Swing speed

0-3r/min

rear shift top

Standard

engine model

4108#

direction form

direction assistance

engine power

88kw

brake form

air brake

tire model

900-20(Front wheel steel tire)

gearbox

JD545 gearbox

Driving speed

≤75km/h

Axle model

198 weighted bridge

wheelbase

2.68m

Self-respect

15.9T

Front and back buildings

Standard

three rows of legs

optional
