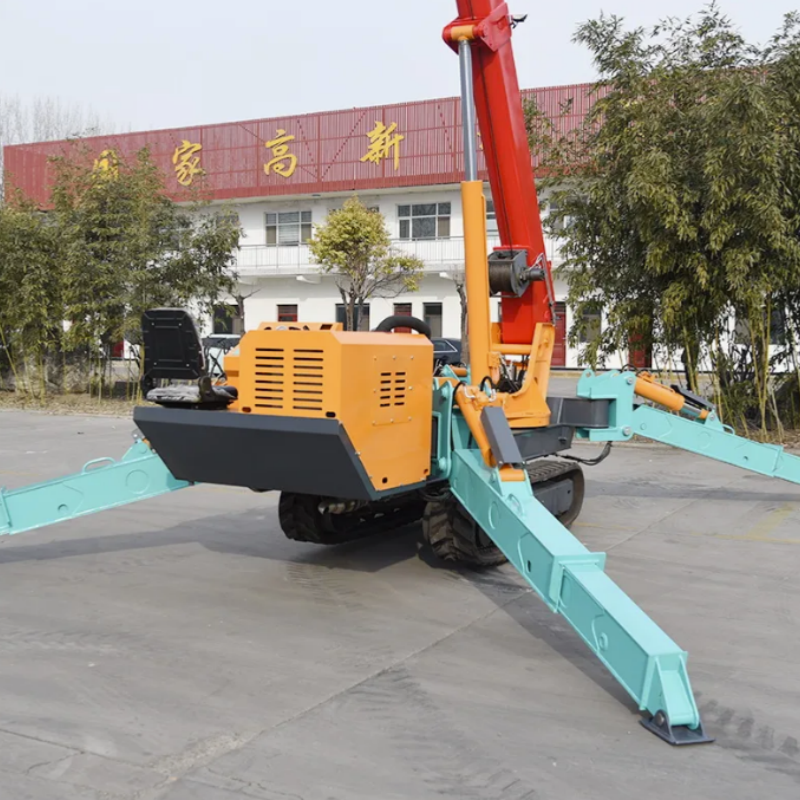

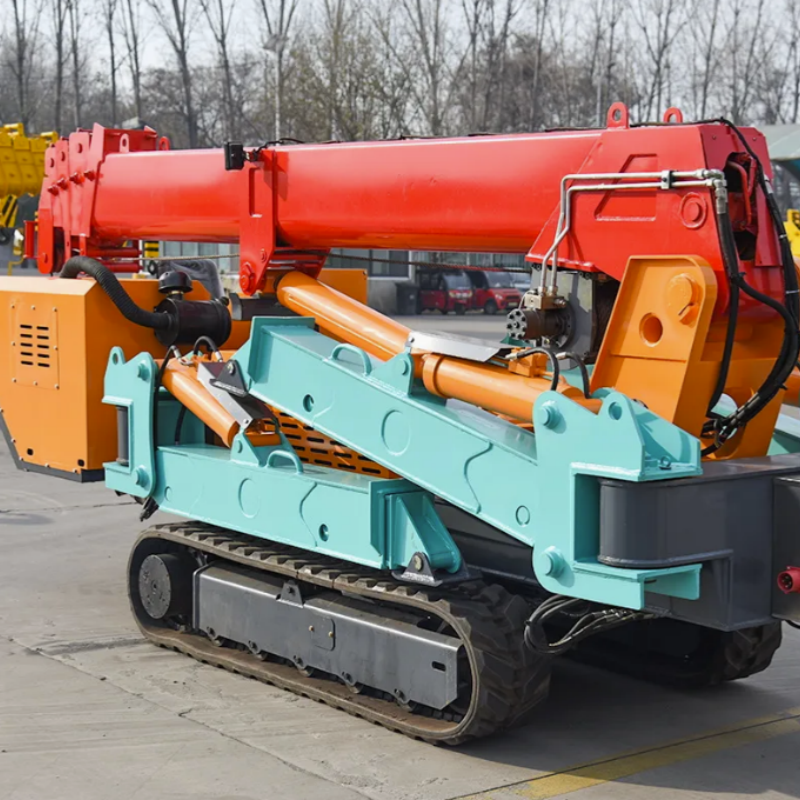

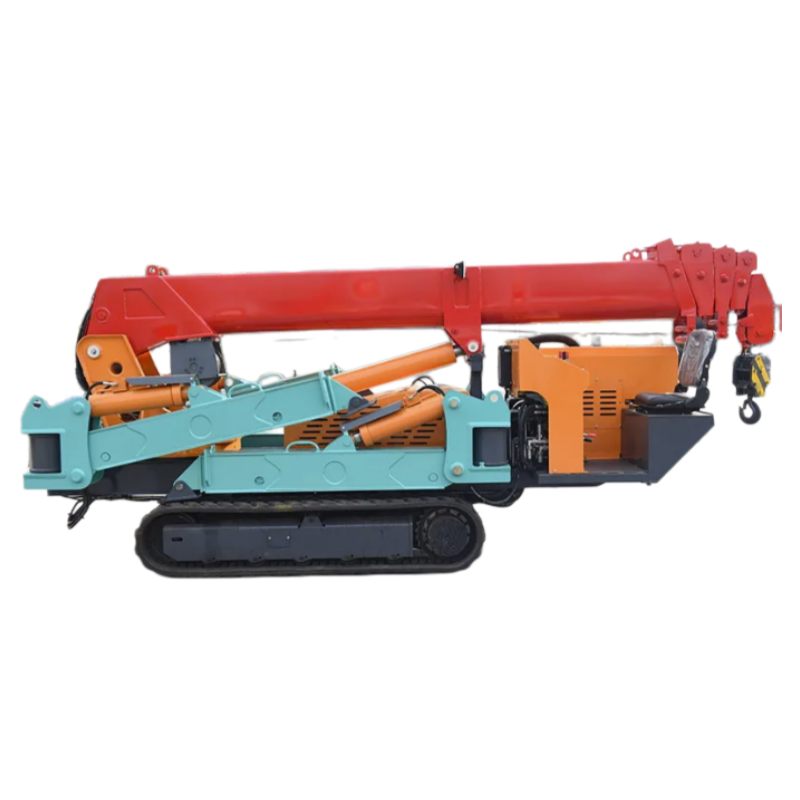

China 5 Ton Mini Electric Mobile Spider Crane
| 5-ton spider crane | |||
| performance | |||
| Load mode | 1200kg | 1600kg | 5000kg |
| Work range | 8.6m | 6.1m | 2.5m |
| Specifications | 5T | ||
| Maximum homework radius | 16.5m | ||
| Maximum above ground lift | 14.5m | ||
| Hook lifting speed | 12m/min(4 ropes) | ||
| Specification of steel wire rope | 11mm*80m | ||
| Crane arm form | 5-section boom, U-shaped structure | ||
| Telescopic arm length | 4.7m-16.5m | ||
| Long term suspension arm | 12.3 m/54 seconds | ||
| Crane arm angle/time | 0-78 °/13 seconds | ||
| Rotation angle/speed | 0-360 ° (continuous)/38 seconds | ||
| Leg movement form | Manual rotation+hydraulic automatic support (two legs) | ||
| Climbing ability | 20°(36%) | ||
| Walking style | Hydraulic motor drive | ||
| Walking speed | 0-2.5km/h | ||
| size | |||
| vehicle size | 5050mm*1400mm*2200mm | ||
| Track size | 300mm | ||
| Maximum extension range of supporting legs | Left and right (6600mm) front and back (5400mm/5200mm) | ||
| electric machinery | |||
| Voltage | AC380V | ||
| engine | |||
| model | Yunnei 490 | ||
| power | 37kw | ||
| Opening method | Electric start | ||
| Startup performance | (-5 degrees Celsius to 40 degrees Celsius) | ||
| Fuel/Volume | diesel oil/60L | ||
| Battery capacity | 24V 80AH | ||
| emission standard | Country 2 | ||
| operating system | |||
| Standard configuration | Diesel engine and electric motor (dual power) | ||
| Types of operations | Hand push operation | ||
| Optional selection | Remote control operation, leg alarm, torque, auxiliary arm | ||
| weight | |||
| Whole machine weight | 6135kg | ||
